Product Description

Suspended Ceiling Framing T Grid/T Bar Row Machine/T Bar Suspended Ceiling Grid


Product description:

The suspended ceiling framing t grid Roll Forming Machine is also called T bar suspended ceiling grid making machine.The T bar is a technical profile for supporting suspended ceiling panels (T-grid suspended ceiling), usually sized 60*60 cm and 60*120 cm. This highly technical system consists of three different profiles with length 600, 1200 (cross tees) and 3600 mm (main runner) although many other sizes exist on the market like the Imperial system.


Working Flow of the suspended ceiling framing t grid roll forming machine

t bar roll forming machine03

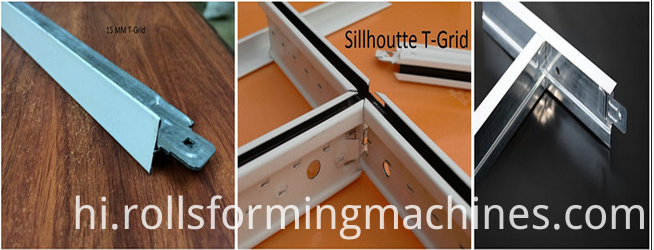

t bar

Some main parameter for the suspended ceiling framing t grid roll forming machine

Loading capacity: 1.5 T

Uncoiling width: 300 mm

Inner diameter: 450-550 mm

Length of the main part: about 3500*800*1400

Weight of main part: 3 tons

Voltage: 400 V/50 HZ 3 Phase (as customer`s request)

Roller fixer: Guide column

Frame: middle plate welded memorial arch frame style

Frame thickness: 25 mm

Drive mode: gear

Material of rollers :GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ40 mm

Number of rollers: 16 rollers

Main power: 3 kw


The component of the suspended ceiling framing t grid roll forming machine

1. Decoiler: set 1

2. Main Machine for roll forming: set 1

3. Control System(PLC): set 1

4. Hydraulic system: set 1

5. Cutting System:set 1

6. Output Table: set 1




Looking for ideal T Bar Suspended Ceiling Grid Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the T Bar Row Machines are quality guaranteed. We are China Origin Factory of T Bar Suspended Ceiling Grid. If you have any question, please feel free to contact us.
