Zhongtuo Roll Forming Machinery Co., ltd

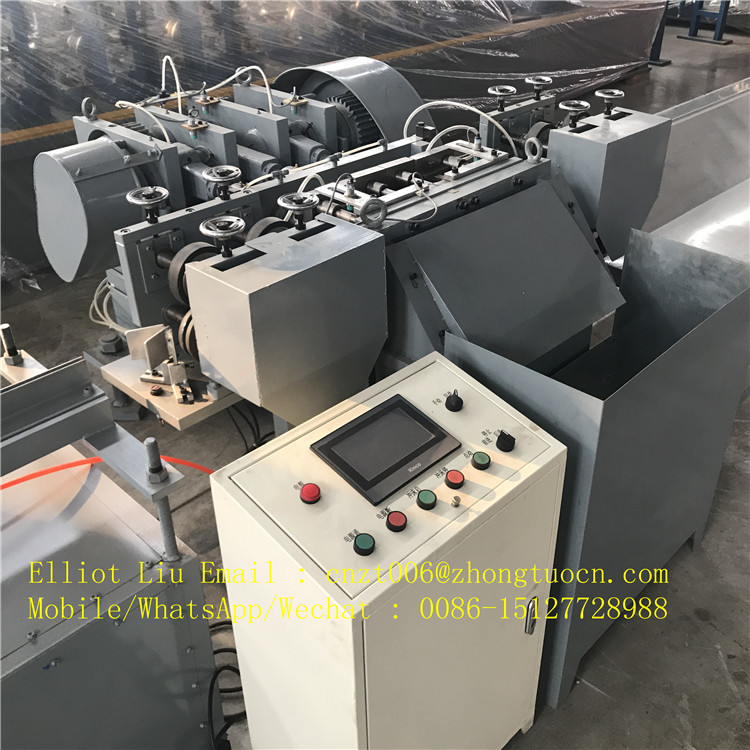

Automatic Ceiling system Tee Grid making Machine
Automatic Ceiling system Tee Grid making Machine
Automatic Ceiling system Tee Grid making Machine
Automatic Ceiling system Tee Grid making Machine
Automatic Ceiling system Tee Grid making Machine

Automatic Ceiling system Tee Grid making Machine

Unit Price: USD 15500 / Set/Sets
Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-006-104

    Name: Automatic Ceiling System Tee Grid Making Machine

    Drive Mode: Gear

    Material Of Rollers: GCr12MoV

    Material Of Shafts: 45# Steel With Tempering

    Diameter Of Shafts: 40mm

    Number Of Rollers: 14 Rollers

    Main Power: 3 Kw

    Working Speed: 45 M Per Min

    T Bar Size: As Customer Demand

    T Bar Length: 600 1200 3600 Mm

Additional Info

    Packaging: As customer's need

    Productivity: 45m/min

    Brand: Zhongtuo

    Transportation: Ocean,Land,Air

    Place of Origin: China(mainland)

    Supply Ability: 20 sets/month

    Certificate: CE, ISO, SGS, IAF,CNAS

    HS Code: 84552210

    Port: Xingang Port Tianjin China

Product Description

Automatic Ceiling system Tee Grid making Machine

Brief Introduction

Automatic Ceiling system Tee Grid making Machine is controled by computer. The biggest difference of fully automatic machine and semi-automatic machine is punching part. semi-automatic T Bar Roll Forming Machine is to change the coil to T bar shape. It can not roll forming and punching as a whole. So if you need to punch, you should buy one punching machine to punch yourself. we can supply the punching machine or you buy it from the market. Our Automatic Ceiling system Tee Grid making Machine contains all the necessary parts.

Automatic Ceiling system Tee Grid making Machine

Main elements of Automatic Ceiling system Tee Grid making Machine

1.Decoiler 1 set

2.main Roll Forming Machine 1 set

3.punching maching(as customer's need) 1 set

4.Cutting machine 1 set

5.PLC control 1 set

6. Light Guage Steel cross tee grid making Machine Counter 1 set

7.hydraulic station 1 set

8.Ceiling cross Tee grid Making Mill receiving table 1 set

Automatic Ceiling system Tee Grid making Machine

Some main parameters of Automatic Ceiling system Tee Grid making Machine

  1. Length of the main part: about 3300х800х1400
  2. Weight of main part: 3 tons
  3. Voltage : 380V/50HZ3Phase (as customer`s request)
  4. Frame : middle plate welded
  5. Memorial arch frame type
  6. Frame thickness:25mm
  7. Drive mode: gear
  8. Material of rollers: GCr12MoV
  9. Material of shafts: 45# steel with tempering
  10. Diameter of shafts: φ40mm
  11. Number of rollers : 14 rollers
  12. main power: 3kw

Automatic Ceiling system Tee Grid making Machine

Automatic Ceiling system Tee Grid making Machine shearing system

  • Feature : Ensure stability, precision and cutting speed
  • Function : Automatic cutting controlled by PLC
  • drive: hydraulic drive and automatic location to decide the dimension and cut the target products.
  • Material of blades: Gcr12MoV quenched
  • Power supply : hydraulic power
  • Frame : Pillar style with rack & pinion system

Automatic Ceiling system Tee Grid making Machine

Automatic Ceiling system Tee Grid making Machine Installation and training:

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. b.Without visiting, we will send you user manual and video to teach you to install and operate. c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

Looking for ideal Tee Grid Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the T Bar Forming Machine are quality guaranteed. We are China Origin Factory of Ceiling System Machine. If you have any question, please feel free to contact us.
