Basic Info
Model No.: ZT-005-87
Additional Info
Packaging: as customer's need
Productivity: 25m/min
Brand: zhongtuo
Transportation: Ocean,Land,as customer requirem
Place of Origin: cangzhou
Supply Ability: 50 sets/month
Certificate: CE, ISO, SGS, IAF,CNAS
Product Description

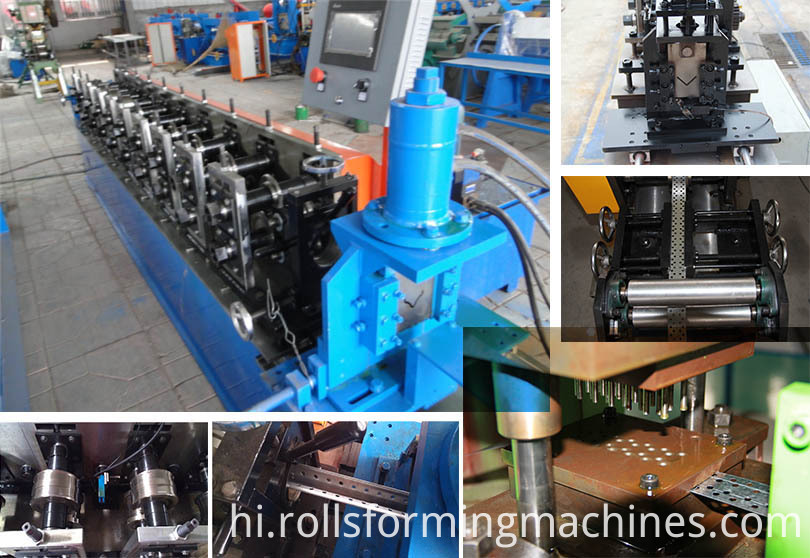

Fully Automatic Light Steel Angel Keel Roll Forming Machine with Holes
brief introduction
Fully Automatic Light Steel Angel Keel Roll Forming machine with Holes is one popular machine. It can be roll forming and punching as a whole. It is controlled by computer all the line. Put raw material into the line and get the final angle keel with holes. Angle profile roll forming machine is easy to operate.
Main elements of Angle profile roll forming machine
1.Decoiler 1 set

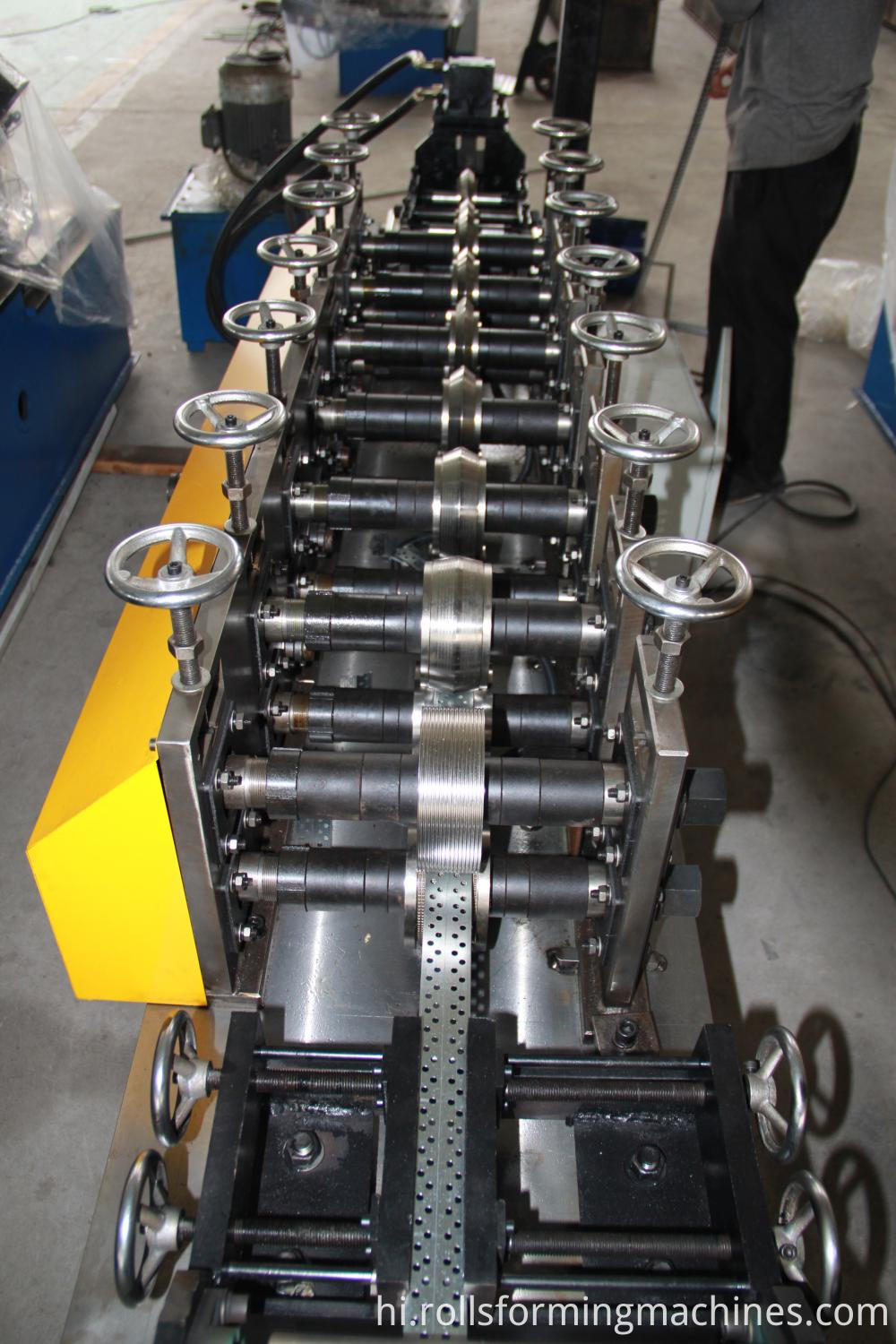

2.main roll forming machine 1 set
3.punching maching(as customer's need) 1 set

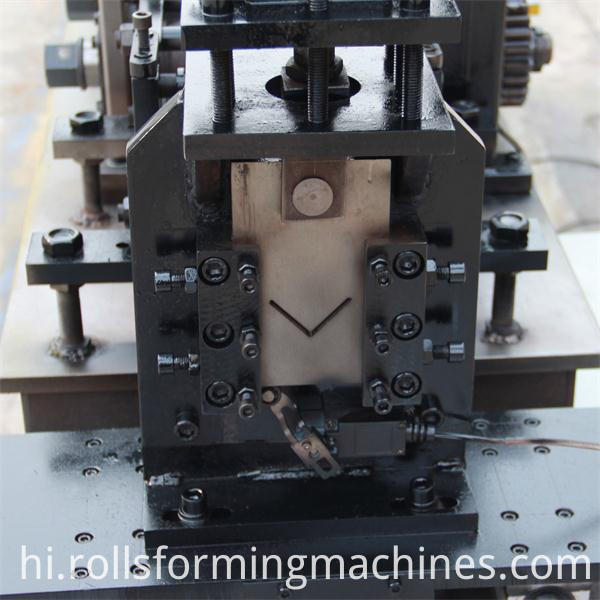

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control 1 set
6. Angle profile roll forming machine Counter 1 set
7.hydraulic station 1 set
8. Drywall Wall Angle Making Machine receiving table 1 set

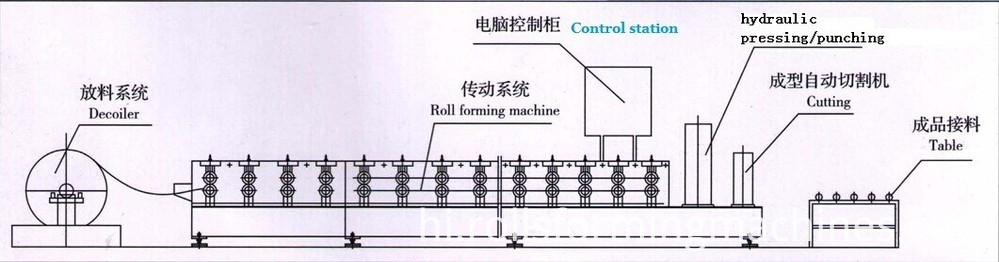

Process flow
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Some main parameters of Angle profile roll forming machine
1.Working efficiency:20m/min
2.Processing material: GI
3.Material hardness: 550MPA-350MPA
4.Thickness of material: 0.2-0.55mm
5.Width of material: 35mm-65mm
6.Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)

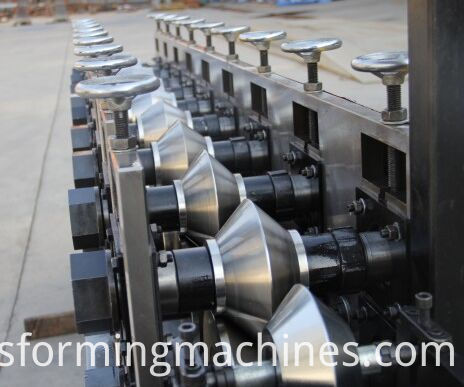

7.Number of rollers: 10 rollers
8. Angle profile roll forming machine Roller fixer: guide column
9.Roller material: Gcr12 MoV quenched
10.Material of shaft: 45# steel
11.Diameter of shaft: 40mm
12. Angle profile roll forming machine Main power: 3KW
13.Hydraulic power: 3KW
14.Hydraulic pressure: 20Mpa
15.Blade material:Gcr12 MoV quenched
16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)
17.Frame: 25mm
18.Drive : gear, chain or case of different speeds(as customer`s demand)
19. Punching mould: each type one set
20.Punching machine: Gcr12 MoV quenched
21.Control system: Delta of Taiwan.
22.Machine color: yellow or blue
23.Drywall Profile Wall Angle Roll Forming Machine Lenth: 3000*800*1400mm
Light gauge steel is a new building material. With the development of China`s modernization, light steel keel widely used in hotels, airport, railway stations, factories, office buildings, interior decoration, ceiling and so on.
Feasure: light weight, high strength, waterproof, shockproof, sound proof, sound absorbing, constant temperature. Short during, simple construction and so on.
some other stud and truss for your reference
Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Drywall Profile Roll Forming Machine
