Zhongtuo Roll Forming Machinery Co., ltd

Knauf Profile Machine Steel Frame Machine
Knauf Profile Machine Steel Frame Machine
Knauf Profile Machine Steel Frame Machine
Knauf Profile Machine Steel Frame Machine
Knauf Profile Machine Steel Frame Machine

Knauf Profile Machine Steel Frame Machine

Unit Price: USD 25000 - 7500 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 10 Days

Contact Now

Basic Info

    Model No.: ZT-005-44

Additional Info

    Packaging: as customer's need

    Productivity: 25m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,Air,as customer requirem

    Place of Origin: cangzhou

    Supply Ability: 50 sets/month

    Certificate: CE, ISO, SGS, IAF,CNAS

Product Description

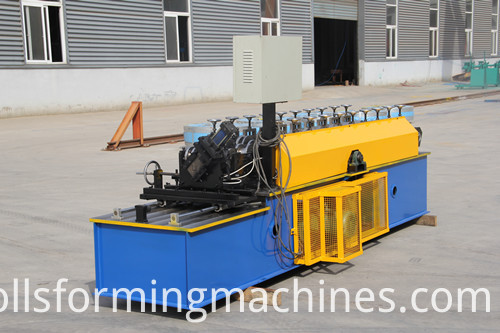

Knauf Profile Machine Steel Frame Machine

Knauf Profile Machine Steel Frame Machine

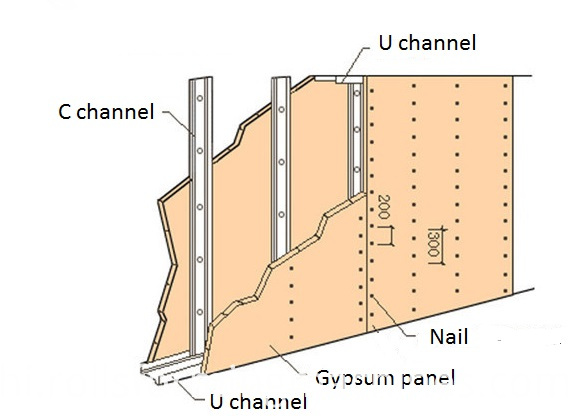

For Knauf Profile Machine Steel Frame Machine is a two-in-one machine, it combine with 60-27 and 27-28 profile, generally this machien use for drywall.

1. One machine either could be used to make U stud in various sizes

2. Able to make C stud in various sizes.

3. For making C and U without changing rollers.

4. Easy to adjust sizes just by sizing in computer.

5. Machine is controlled by PLC station.

Knauf Profile Machine Steel Frame Machine

Knauf Profile Machine Steel Frame Machine

Main elements of Knauf Profile Machine Steel Frame Machine

1.Decoiler

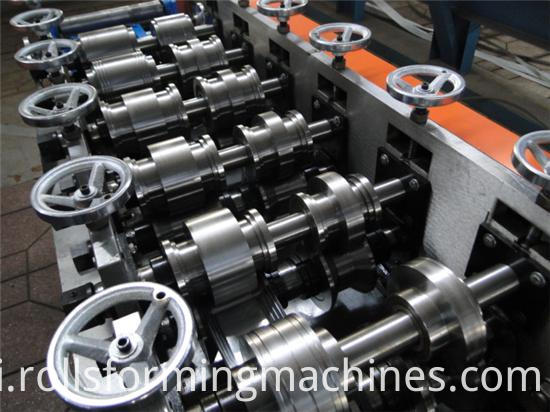

2.main Roll Forming Machine

3.punching maching(as customer's need)

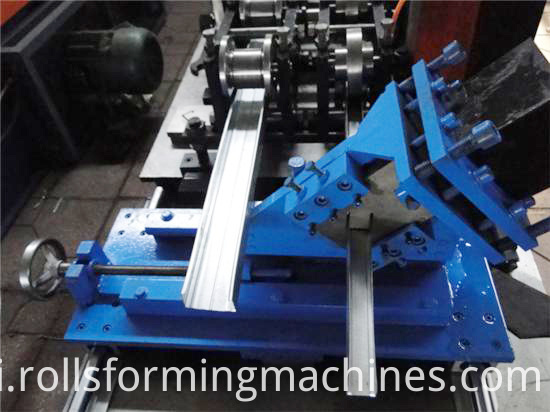

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)

5.PLC control

6.Knauf Profile Machine Steel Frame Machine Counter

7.hydraulic station

8. receiving table

Some main parameters of Knauf Profile Machine Steel Frame Machine

1.Working efficiency:25m/min or 50m/min

2.Processing material: GI

3.Material hardness: 550MPA-350MPA

4.Thickness of material: 0.5-1.2mm

5.Width of material: as you need

6.Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)

7.Number of rollers: 10 rollers

8.Drywall C stud Making Machine Roller fixer: guide column

9.Roller material: Gcr12 MoV quenched

10.Material of shaft: 45# steel

11.Diameter of shaft: 40mm

12. Main power: 3KW

13.Hydraulic power: 3KW

14.Hydraulic pressure: 20Mpa

15.Blade material:Gcr12 MoV quenched

16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)

17.Drywall C stud Making Machine Frame: 25mm

18.Drive : gear, chain or case of different speeds(as customer`s demand)

19.Drywall C stud Making Machine Punching mould: each type one set

20.Punching machine: Gcr12 MoV quenched

21.Drywall C stud Making Machine Control system: Delta of Taiwan.

22.Automatic Drywall C stud Forming Machine color: yellow or blue

23.Lenth: 3000*800*1400mm

Knauf Profile Machine Steel Frame Machine

Steel Frame Machine

Knauf Profile Machine Steel Frame Machine

Metal Drywall CW UW Sheet Roll Forming Machine Prices Wall C U Channel Making Machine


Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and

USD50/person/day for salary.

3. Need one technician.

4. Training time: one week (contains the time of installation and adjustment)


Looking for ideal Knauf Profile Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Frame Machine are quality guaranteed. We are China Origin Factory of Steel Knauf Machine. If you have any question, please feel free to contact us.

Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Drywall Profile Roll Forming Machine
