Zhongtuo Roll Forming Machinery Co., ltd

C Z Adjustable Purlin Roll Forming Machine
C Z Adjustable Purlin Roll Forming Machine
C Z Adjustable Purlin Roll Forming Machine
C Z Adjustable Purlin Roll Forming Machine
C Z Adjustable Purlin Roll Forming Machine

C Z Adjustable Purlin Roll Forming Machine

Unit Price: USD 13500 - 38000 / Set/Sets
Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB,CFR,CIF,FCA,CPT
Min. Order: 1 Set/Sets
Delivery Time: 40 Days

Contact Now

Basic Info

    Model No.: ZT-005-63

    Shape: C Channel

    Perforated: Not Perforated

    Length: 5-12m

    Number Of Forming Steps: 12stations

    Shaft Material: 45# Steel

    Outer Diameter: 80mm

    Roller Material: Cr12MoV

    Transport: Chain

    Forming Speed: 5-12m/min

    Motor: 15kw

    Frame: Middle Plate Welded

    Weight Of Machine: About 9ton

    Hydraulic Motor Power: 5.5kw

Additional Info

    Packaging: nude packing

    Productivity: 8-13m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,as customer requirem

    Place of Origin: cangzhou

    Supply Ability: 45 working days

    Certificate: CE\ISO9001

Product Description

C Z Adjustable Purlin Roll Forming Machine

C Z adjustable purlin Roll Forming Machine is a machine can produce many sizes,Generally,there are three types of machine, c purlin machine, z purlin roll forming machine, c z roll forming machine. The Web width can be 60-300mm Flange height can be 30-80, it is adjustable from min to max. The size of holes can be design by customers.General this C Z adjustable purlin roll forming machine design with before punching and cutting,and it need worker to adjust the rollers to change the profile.It will need about 2 hours.

This C Z adjustable purlin roll forming machine consists of uncoiler,feeding and straightening,punching and cutting part, main roll forming part,cutting device and runout table.

C Z Adjustable Purlin Roll Forming Machine

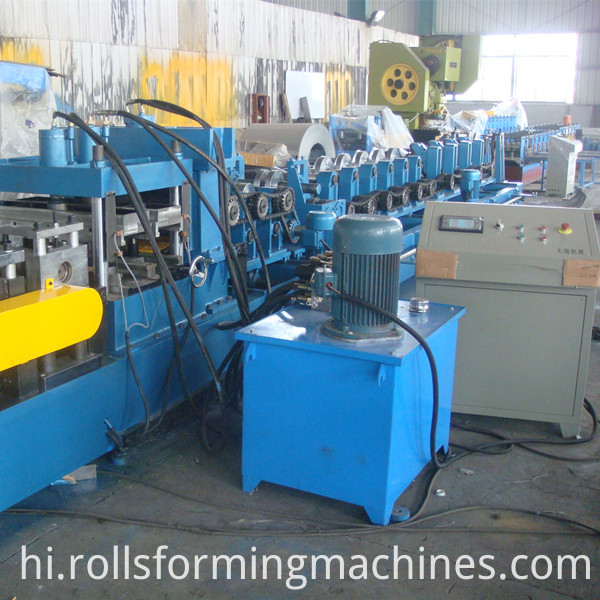

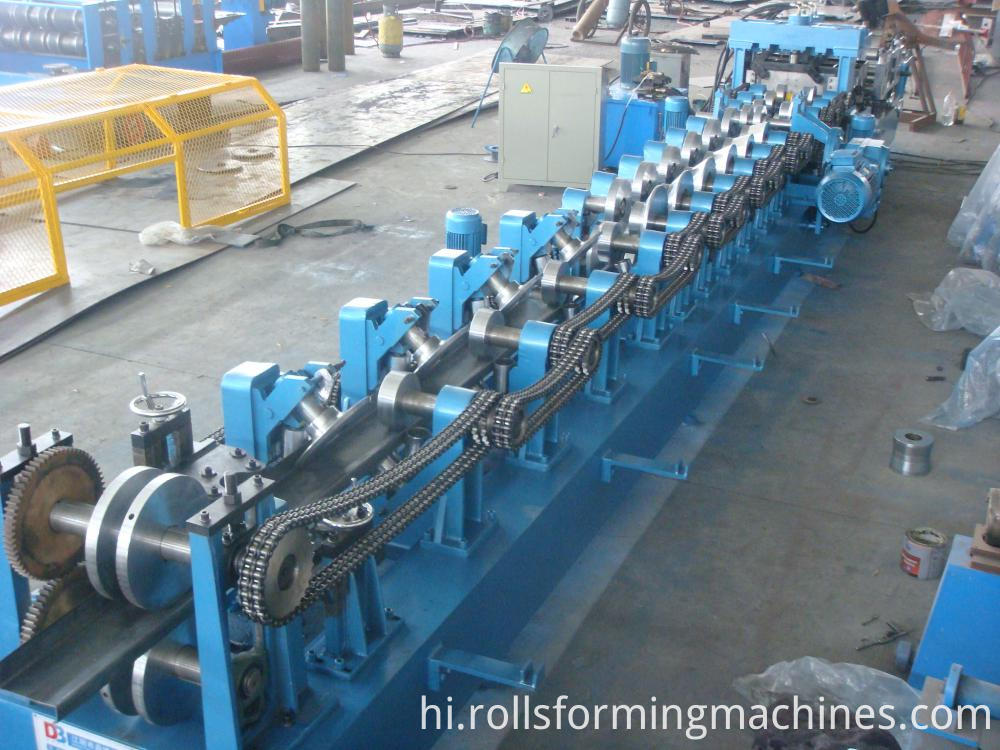

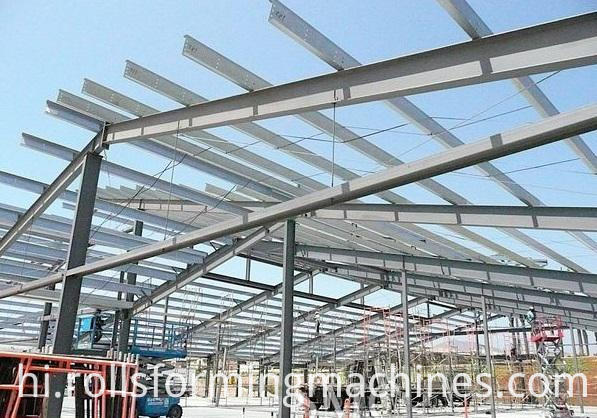

Some pictures for you reference:

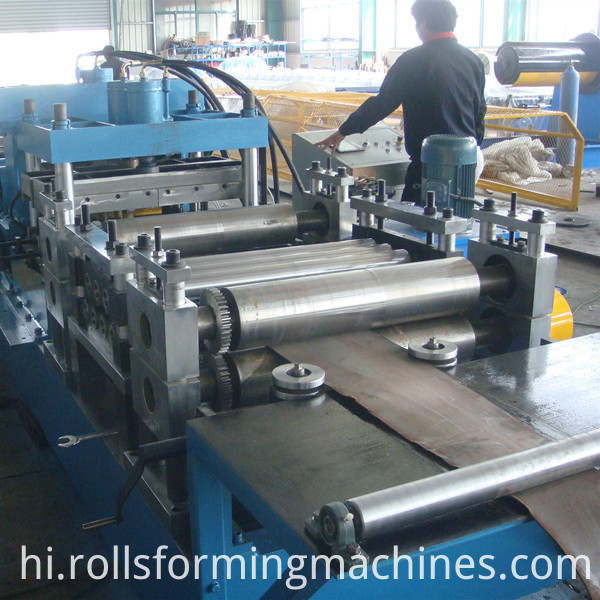

C Z Adjustable Purlin Roll Forming Machine

C Z Adjustable Purlin Roll Forming Machine

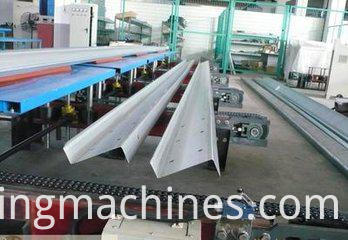

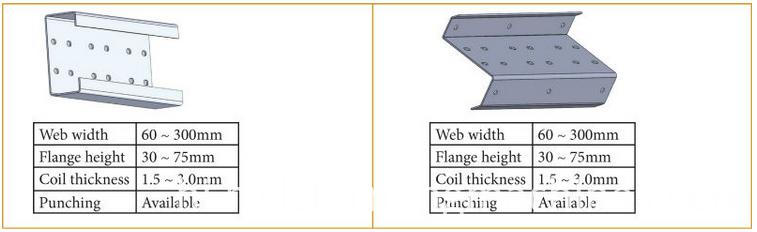

The size we can do:

C Z Adjustable Purlin Roll Forming Machine

The Parameters of C Z adjustable purlin roll forming machine:

Manual un-coiler System

Loading capacity: 3T;

Uncoiling width: 500mm ;

Inner diameter: 450-550mm

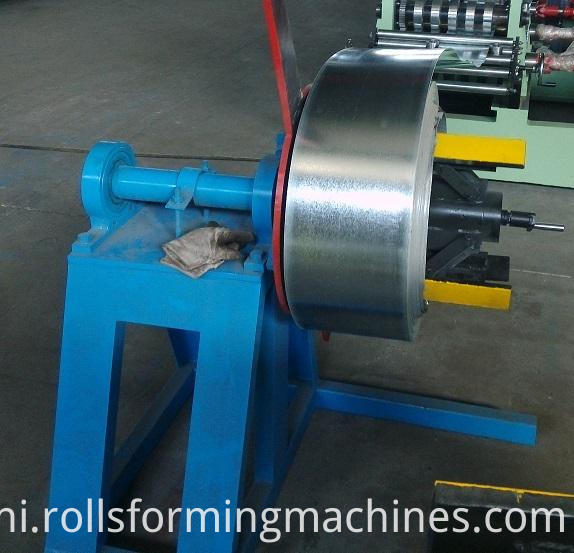

C Z Adjustable Purlin Roll Forming Machine--decoiler

Entry Beach

Specification:Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

C Z Adjustable Purlin Roll Forming Machine

Shearing Mechanism and punching (include cutting tools, hydraulic tank, cutter machine)

1)Feature : Ensure stability, precision and cutting speed; Function : Automatic cutting controlled by PLC; Material of blades: Gcr12MoV quenched;

2)Power supply : hydraulic power;

3)Frame : Pillar style with rack & pinion system;4)Stroke switch : non-contact photoelectric switch

C Z Adjustable Purlin Roll Forming Machine

C Z Adjustable Purlin Roll Forming Machine

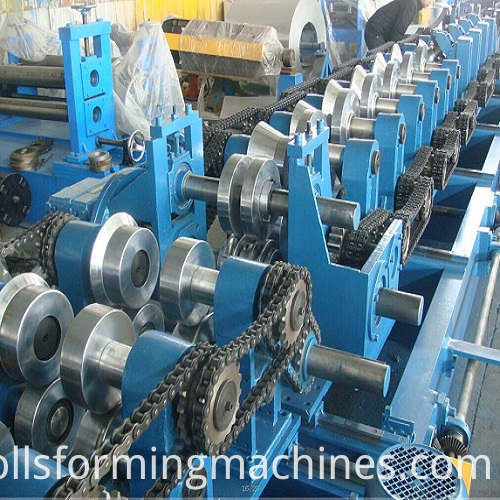

Main Roll Forming System for C Z Adjustable Purlin Roll Forming Machine

1)Number of forming steps:12stations;

2)Shaft material:45# steel , Outer diameter:80mm ;

3). Roller Material:Cr12MoV ;

4).Transport: chain ;

5).Forming speed:5-12m/min ;

6).Motor:15kw ;

7).Voltage:380v,50Hz,3 phase ;

8)Frame : middle plate welded ;

9)Dimensions:12000mm*1800mm*1600mm ;

10)Weight of machine: about 9ton

C Z Adjustable Purlin Roll Forming Machine

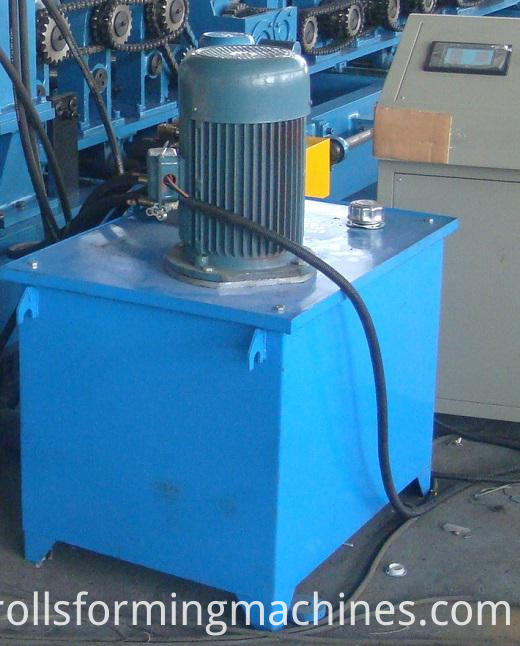

Hydraulic Station

1)Hydraulic motor Power: 5.5kw ;

2)Hydraulic oil: 46# (include a set of hydraulic tank , a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves )

C Z Adjustable Purlin Roll Forming Machine

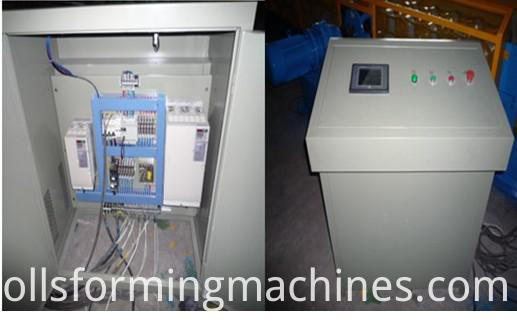

Electric Control System

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta; 3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

C Z Adjustable Purlin Roll Forming Machine

Payment method:

Method 1:

Payment of the contract with following schedule:

- 30%: The payment shall pay by T/T the down payment to the Seller within 15 days after the signature of the Contract. The Contract then comes into effect.

- 70%: The buyer shall pay to seller the remaining 70% of total contract amount before the seller`s ship the machine to XINGANG, CHINA.

Method 2

L/C is also acceptable.


Installation, Commissioning, Test and Training

1. The engineers from the Seller shall supervise the installation on site and fulfill the commissioning. They should start off within 10 days after they get the information from the Buyer.

2. The Buyer signs in the Certificate of Acceptance.

3. The Seller trains the operators of the Buyer during the commissioning

4. Commissioning: about 1 engineers in 7 days.

5. The Buyer shall pay for the international air tickets and the local, such as board and lodging, daily transportation, communication,Insurance, etc. The Buyer shall pay USD 80 /day /person to the Seller for the commissioning.

6. The Buyer shall prepare an interpreter for better communication between the two sides.

Looking for ideal C Z Adjustable Purlin Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the C Z Purlin Forming Machine are quality guaranteed. We are China Origin Factory of Purlin Roll Forming Machine. If you have any question, please feel free to contact us.
