Zhongtuo Roll Forming Machinery Co., ltd

Roll Up Garage Door Machinery
Roll Up Garage Door Machinery
Roll Up Garage Door Machinery
Roll Up Garage Door Machinery
Roll Up Garage Door Machinery

Roll Up Garage Door Machinery

Unit Price: USD 22000 - 8500 / Set/Sets
Payment Type: T/T,L/C,D/A,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005-74

Additional Info

    Packaging: As Customer's Requirement

    Productivity: 10-15m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land,as customer requirem

    Place of Origin: Made in China

    Supply Ability: 20set per Month

    Certificate: ET, ISO9001

Product Description

Roll Up Garage Door Machinery

The Roll Up Garage Door Machinery can manufacture the Galvanized roller shutter door slat. Produced products are in fashionable design and are widely used. Roll Up Garage Door Machinery with the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.


Steel Roll Up Garage Door Machinery


Process Flow of Roll Up Garage Door Machinery :

Uncoiling→ (Perforation machine )→Feeding material into machine→Roll forming→Measuring length→ (punching part)→Auto cutting→Products receiving

N.B: you can choose the Perforation machine and punching part as your demand.

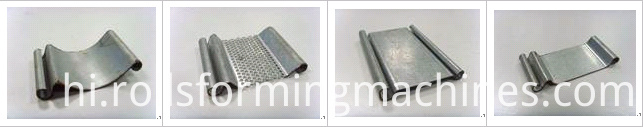

The product we can do :

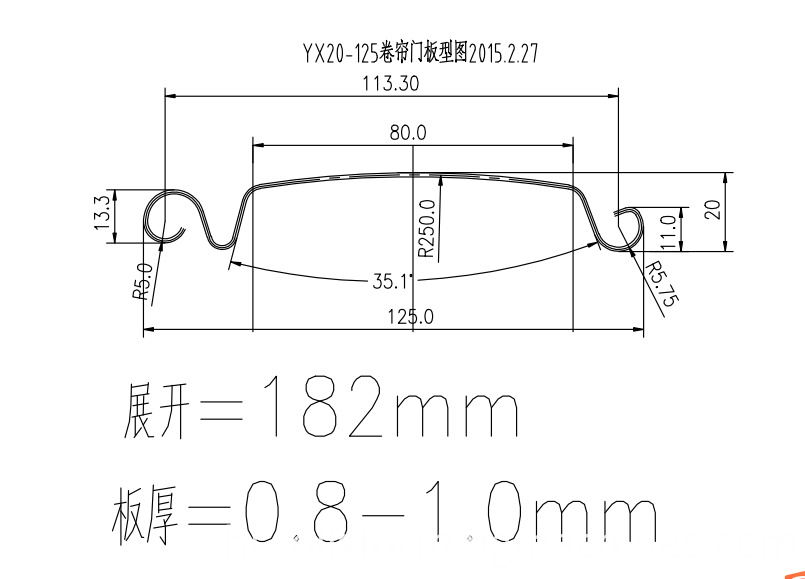

As a manufacturers,we can make the shutter door machine by customer`s demand, with a profile drawing and thickness, we can do design the machine quickly.Until now,we can do many kinds of shutter door machine,such as shutter door machine with perforation and holes,Australian-style shutter door and shutter door slat. And now, we start the new business about shutter door machine.Here is some profile drawings for you reference.

Roll Up Garage Door Machinery

Roll Up Garage Door Machinery

Parameters of Roll Roll Up Garage Door Machinery:

Raw material

Type: colored steel plate, galvanized plate, or aluminium plate

Thickness: 0.5---1.5 mm (As customer`s need)

Material hardness: 550 Mpa---350 Mpa

Material width: 117mm-310mm (According to customer`s profile)

Uncoile

Max width: 1250mm (According to customer`s profile)

Inner diameter: 450-650mm (According to customer`s profile)

Max Loading capacity: 5 T

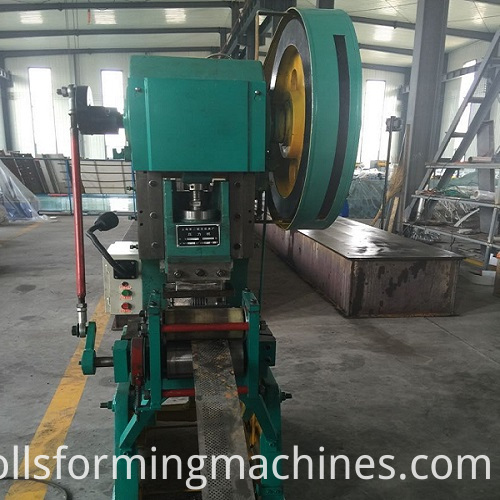

Perforation machine

Power: 4KW (According to the thickness)

The distribution,area and size of the holes: As customer`s need (The basic information for quote the Perforation machine)

Thickness: 0.5---1.5 mm (As customer`s need)

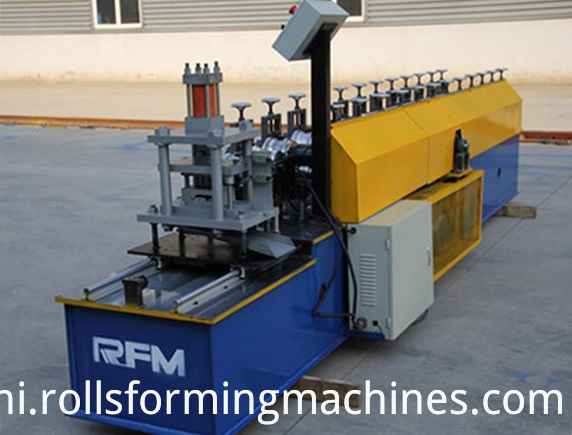

Main roll machine of Roll Up Garage Door Machinery

Working efficiency: 6-10m/min

Forming by rolling: Roll 12 rows (Final rollers depend on the design) Roller material: Gcr12MoV quenched

Shaft material: 45#steel processing

Diameter of shaft: ¢50mm (Final rollers depend on the design)

Main part power: 5.5kw (Depend on the thickness of material and size of machine)

Hydraulic motor power: 3kw (Depend on the thickness)

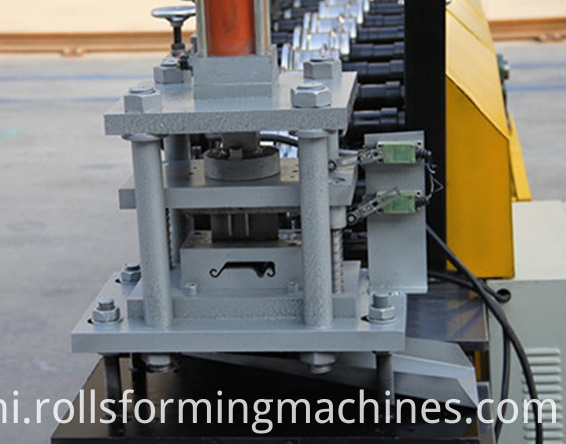

Scissor material: Gcr12MoV quenched

Roller material: Gcr15MoV

Voltage: 380V, 50HZ,3 phase (As customer`s need)

Transmission: Gear box (Chain and gear box depend on thickness and customer`s need)


Roll Up Garage Door Machinery

Roll Up Garage Door Machinery

Shutter Flat Making Machine


FAQ

1. Do you have after sales support?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

2. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

3. What can you do if the machine broken?

Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts to replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.

4. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

5.How long the Roll Up Garage Door Machinery could be made?

Normally speaking, the machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.


Looking for ideal Garage Door Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Shutters Making Machine are quality guaranteed. We are China Origin Factory of Steel Garage Making Machine. If you have any question, please feel free to contact us.
