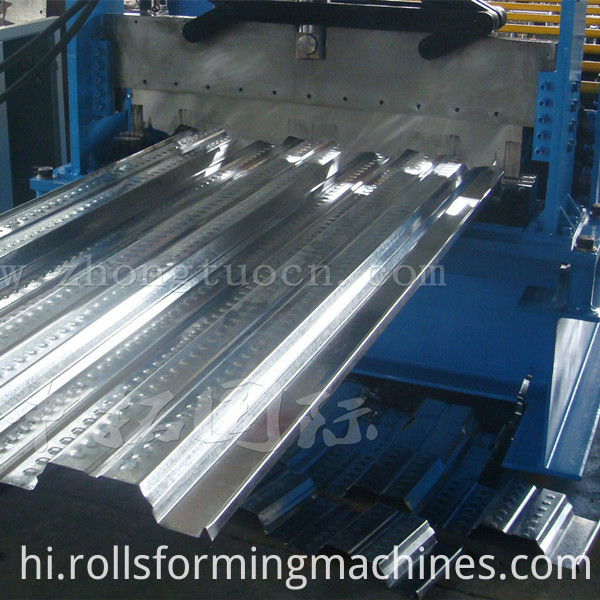

Aluminum Metal Sheet Floor Decking
Roll Forming Machine
Machine Description: Floor Deck Roll Forming Machine
Quantity: 1 SET
Delivery time: 45 working days after receiving deposit
Container Type: One 40GP
Price/ USD (FOB TIANJIN): 19500-29500
Floor Deck Roll Forming MachineProcess Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Product name: floor deck roll former
1. Suitable Material
Type:GI/PPGI/AL
Thickness: 0.80-1.20mm
2. Product Specifications
Length: Any length
Length Tolerance: ±2mm/6m
3. Working Speed: 25 m/min (Standard machine)
4. Control System: Mitsubishi/Siemens PLC& transducer (Custom)
5. Total Power: 15KW
6. Total Weight: About 14T (Up to final design)
Components of Floor Deck Roll Forming Machine:
1. Manual Decoiler: set 1
2. Main forming machine: set 1
3. PLC control system: set 1
4. Hydraulic pump station: set 1
5. Post cut: set 1
6. Electric motor: set 1
7. Output table: set 1
8.Counter: set 1

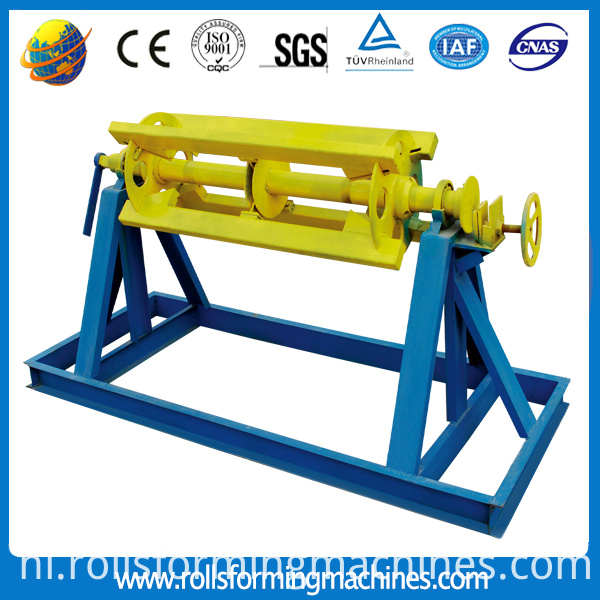

Un-coiler System
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5T
Uncoiling width: 1250mm
Inner diameter: 450-550mm
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

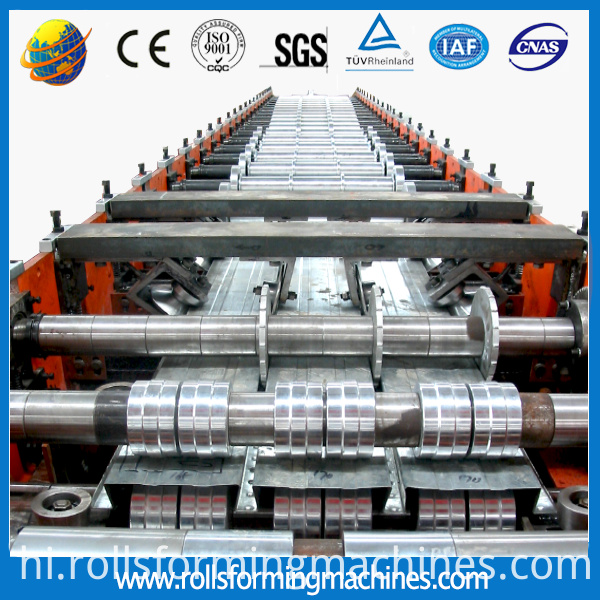

Forming device
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
Main parameter of Floor Deck Roll Forming Machine
1. Length of the main part: 14200*1300*1400mm
2. Weight of main part: About 14 t
3. Voltage: 380V/50HZ3Phase (as customer`s request)
4. Roller fixer: Guide column
5. Frame: Middle plate welded (Memorial arch frame type)
6. feeding width: 1000mm
7. Drive mode: chain
8. Material of rollers: 5# steel with tempering
9. Material of shafts: 45# steel with tempering
10. cutting: hydralic cutting
11. Number of rollers: 30 rollers
14. Main power: 15kw (Cycloidal planetary gear speed reducer)

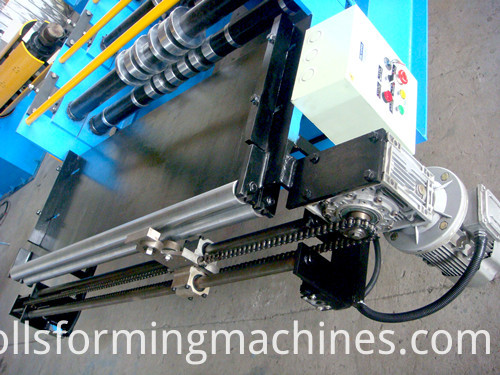

Cutting device
Advanced hydraulic drive with track cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
Blade Material: Cr12 steel with quenched treated 60-62°C; Cutting system: Full automatic

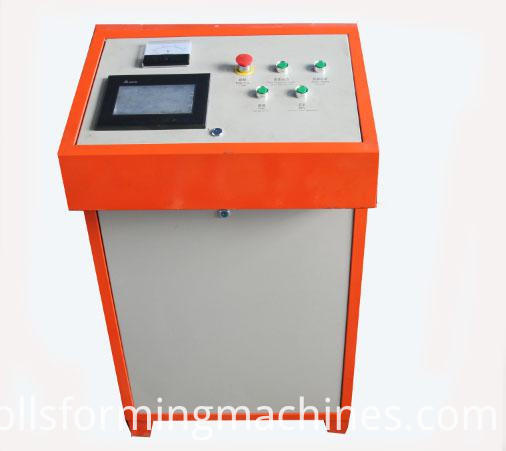

Controlling device
Screen: Text screen displayer
PLC: Taida DVP14ES from Taiwan
Coder: Omron

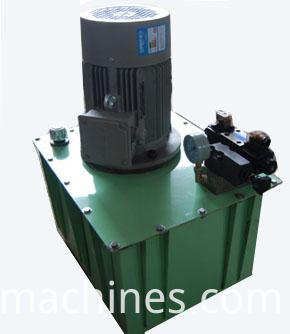

Hydraulic
Orgin: Advanced hydraulic system from Taiwan
Power: 3kw
Our Services
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
Looking for ideal Floor Deck Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Floor Deck Machines are quality guaranteed. We are China Origin Factory of Cold Roll Machine. If you have any question, please feel free to contact us.
