Zhongtuo Roll Forming Machinery Co., ltd

CNC slitting machine line for cut the steel coil into different width

CNC slitting machine line for cut the steel coil into different width

Unit Price: USD 20000 - 50000 / Set/Sets
Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: ZT-009

    Material Thickness: 0.2--1.0mm

    Material Hardness: 195 Mpa---350 Mpa

    Material Width: 900—1250mm

    Inner Diameter: 508mm

    Max Out Diameter: 1200mm

    Width Tolerance:: 0.5mm

    Max Slitting Width: 300 Mm

    Min Slitting Width: 40 Mm

    Forming Steps: 10 Rollers

    Shaft Diameter: 40mm

Additional Info

    Packaging: packaged by plastic film and loaded in Container and some spare parts in the wooden box

    Productivity: 30 set

    Brand: Zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO, SGS

Product Description

Model 1250 MM slitting machine line cut to length machine sheet separete machine

slitting machine line cut to length machine sheet separate machine

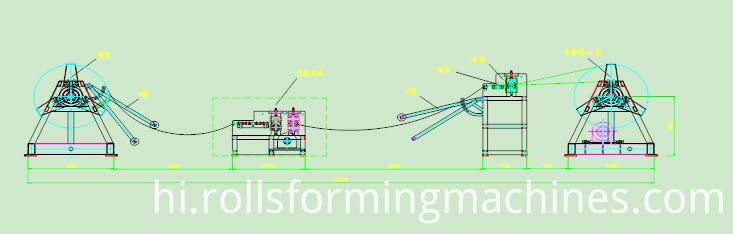

Slitting machine Production process

Decoiler, guiding device, slitting device, cutting device, length measure device, extension device, recoiler, coil car, hydraulic station, PLC controlling system.

cut to length machine


slitting machine line

Production parameters:

Processing material:

Pre-painted steel

Material thickness

0.3--1.0mm

Material hardness

195 mpa---350 mpa

Materisl width

900-1250mm

Inner diameter

508mmmm

Max out diaeter

1200mm

Max weight

Max weight: 5 T

configurations

Decoiler, Slitting device, Cutting device, Recoiler

Decoiler specifications

Max coil weight:

5 T

Inner diameter:

GI 508mm

Max out diameter

1250mm

Hydraulic station power:

3 kw

Decoiler speed:

0-25m/min

Finished product specifications:

width tolerance:

0.5mm

Min slitting width:

25 mm

Forming steps

10rollers

Shaft diameter

40mm

Design type

Memorial arch

Slitting device specifications

Slitting speed:

0-25mm/min

Driving motor:

15 Kw

Slitting shaft diameter

Ф100mm

Shearing blade

9 pieces

Max slitting pieces

10 pieces

Min slitting width

80mm

Shearing blade material:

12CrMoV

Pinching roller:

2 couples

Cutting device

Cutting thickness

0.3-1.0mm

Cutting length

500-4000mm

Cutting width:

900-1250mm

Cutting speed:

4-15m/min

Recoiler specifications:

Max coil weight:

5 T

Inner diameter:

508/610mm

Max out diameter:

1250mm

Recoiler motor:

7.5Kw

Hydraulic station power:

3Kw

Recoiler speed:

0-25m/min

Voltage

220v/60hz/3ph(or as required)

l Standard Equipment of Machine

5T decoiler

1 set

Slitting device

1set

Extension device

1 pc

5T coiler

1 set

Coil car

1 pc

Hydraulic Station

2pcs

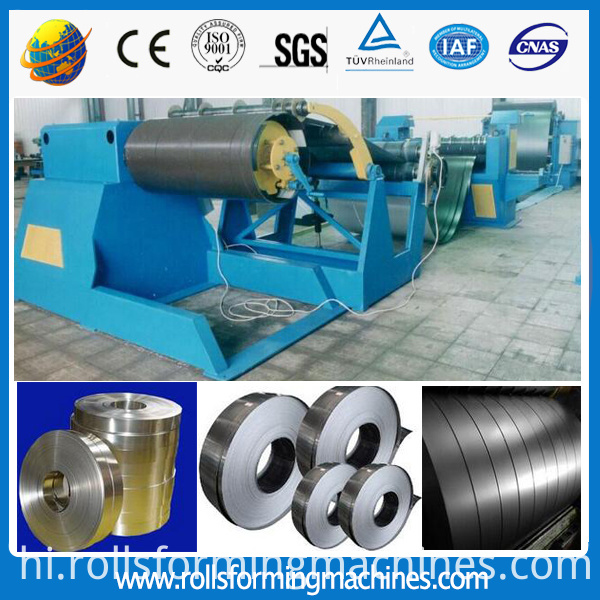

The slitting machine is used to cut the steel coil into required steel strips.The slitting machine is used for cutting the steel plate, for example,galvanize coil,Zinc Aluminized sheet,stainless.Especially used with the C U Z L W stud and channel forming machine for ceilings and drywall building.The machine line can be used with a simple packing equipment, and cut different width stips by changing the knives.

Zhongtuo cold Bending Machine factory introductions:


ZHONGTUO ROLLFORMING MACHINERY CO., LTD from 1998. We are specialized in manufacturing color steel forming machine, light keel machine, C&Z purlin machine, Glazed tile forming machine, Welded Tube Mill, Stone Coated Roof Production Line, steel structural floor panel Roll Forming Machine and so on. We also have the derivatives and raw material. We real provide you one station, non-stop service, Now, our machine have been exported to 30 countries, such as Canada, American,South Korea, Russia, Holland, Sri Lanka, Malaysia, India, Brazil, etc. Our company insists on the service aim: Quality First, Credit First. We believe that we can make the future cooperation and achieve win-win.
How long has the business existed?
Our factory ZHONGTUO roll forming machine factory is set up 1998, and started foreign business in 1998. and strart abroad business in 2007. We are the leader manufacturer in north of china in the roll forming machine field
What is their annual turnover?
5000000 RMB
Location and facilities:
Address: 104 National Road,Nancang Street,Botou City, cangzhou, hebei province, china.
Facilities: Sawing machines / lathe/ numerical control/CNC machines
Sign matches name of business registration?
Size and adequacy of facilities (are they modern, well-equipped, a lot of workers?)
200 workers
After sales service:
Do they offer manuals?
Yes, we offer Manuals for every machine in Engish.
how is the Training?
Yes, we offer training and overseas training.
Do they ever fly technicians out?
Yes our technicians many times fly to customer for technology guidance.
And Russia market is one of our main market.
whats the warranty
1 years and all lifetime customer door 's service
we do many times SGS, so SGS is no problem for us.

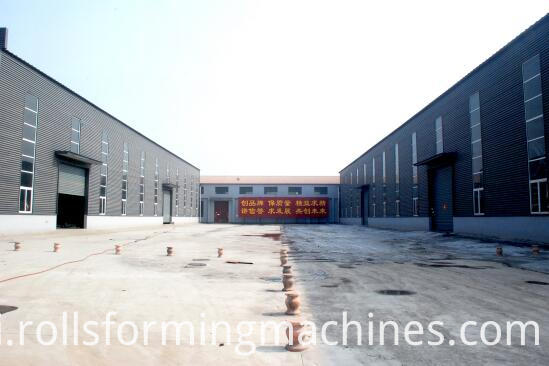

factory

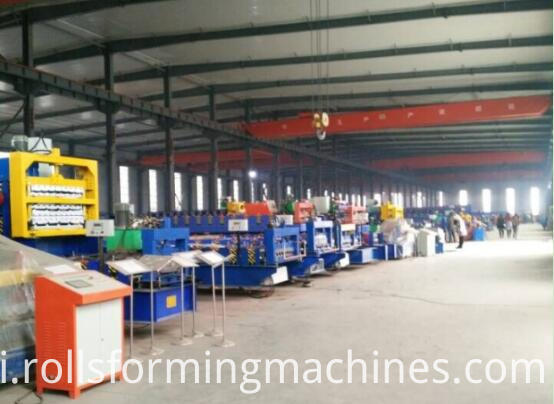

factory workshop


woekshop picture

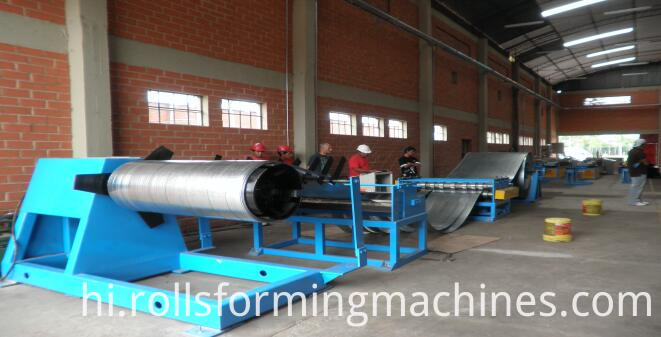

The CNC slitting machine line can cut the steel coil into different width according to customers' requirements.

by adjust the gap to change different knives. The steel strips can be cut into the width from 40mm-300mm



Looking for ideal CNC Slitting Machine Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Model 1250 MM Slitting Machine are quality guaranteed. We are China Origin Factory of Sheet Separate Machine. If you have any question, please feel free to contact us.

Product Categories : Slitting Line/Cut To Length Line
